MySQL

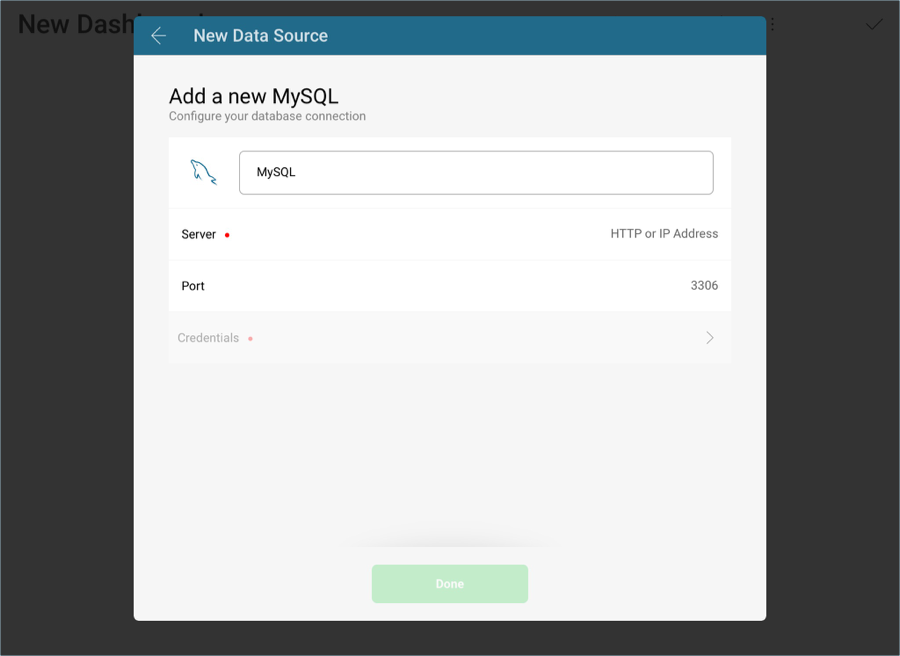

To configure a MySQL server data source, you will need to enter the following information:

EnterMySQLServerDetails_All

  1. Data Source Name: this field will be displayed in the Data Sources list.

  2. Server: the computer name or IP address assigned to the computer on which the server is running.

  3. Port: if applicable, the server port details. If no infomration is entered, Reveal will connect to the port in the hint text (3306) by default.

  4. Credentials: after selecting Credentials, you will be able to enter the credentials for your MySQL server or select existing ones if applicable.

    • Name: the name for your data source account. It will be displayed in the list of accounts in the previous dialog.

    • (Optional) Domain: the name of the domain, if applicable.

    • Username: the user account for the MySQL server.

    • Password: the password to access the MySQL server.

    Once ready, select Create Account. You can verify whether the account is reaching the data source or not by selecting Test Connection.

How to find your Server Information

You can find your server by following the steps below. Please note that the commands should be executed on the server.

WINDOWS LINUX MAC

1. Open the File Explorer.

1. Open a Terminal.

1. Open System Preferences.

2. Right Click on My Computer > Properties.

2. Type in $hostname

2. Navigate to the Sharing Section.

Your Hostname will appear as "Computer Name" under the Computer name, domain and workgroups settings section.

Your Hostname will appear along with your DNS domain name. Make sure you only include Hostname in Reveal.

Your Hostname will be listed under the "Computer Name" field on top.

You can find your IP address by following the steps below. Please note that the commands should be executed on the server.

WINDOWS LINUX MAC

1. Open a Command Prompt.

1. Open a Terminal.

1. Launch your Network app.

2. Type in ipconfig

2. Type in $ /bin/ifconfig

2. Select your connection.

IPv4 Address is your IP address.

Inet addr is your IP address.

The IP Address field will have the necessary information.

Working with Views

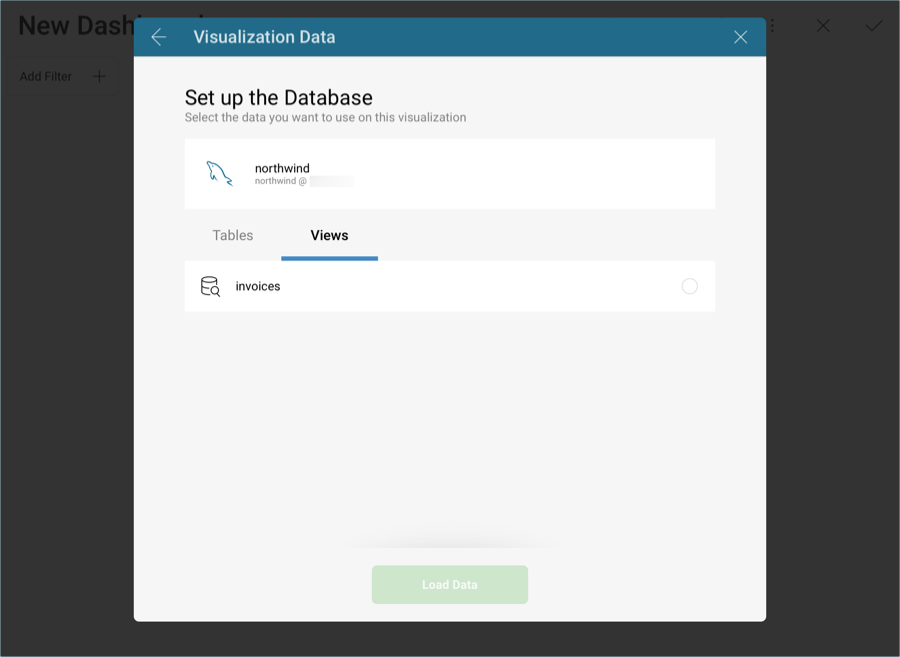

With Reveal, you can retrieve MySQL data from entire tables, but you can also select a particular view that returns a subset of data from a table or a set of tables instead.

MySQLViews_All

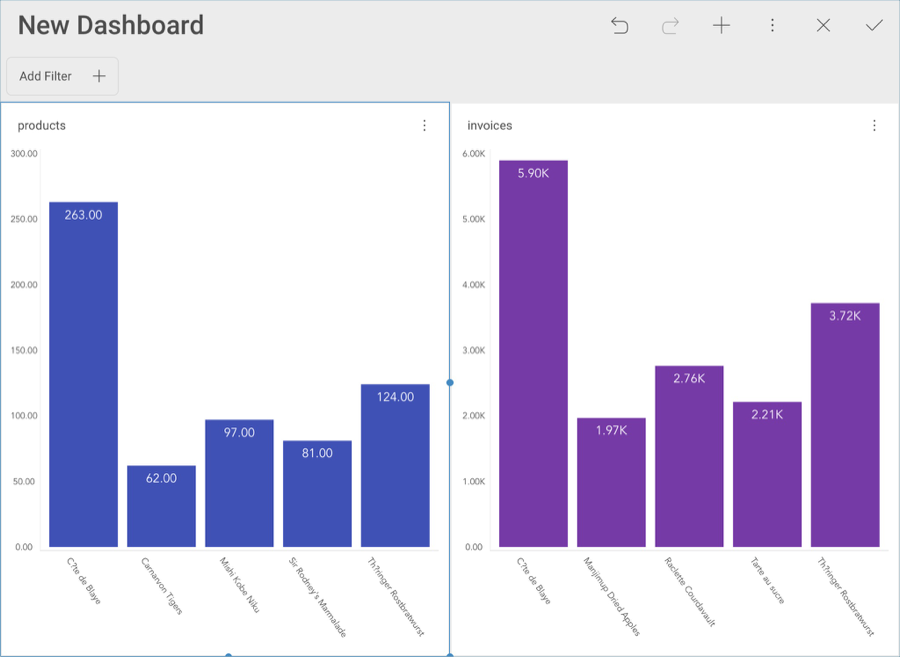

In the sample above, the invoices view contains a modified version of the data in the Products table in the MySQL server.

InvoicesMySQLViewSample_All

For more information on views and MySQL, visit this documentation website.
