Configuring Comparative Ranges

Purpose

This topic explains, with code examples, how to configure ranges in the UltraBulletGraph™ control. This includes the number of ranges and their positions, lengths, widths, and formatting.

Required background

The following topics are prerequisites to understanding this topic:

Topic Purpose

This topic provides conceptual information about the UltraBulletGraph control including its main features, minimum requirements, and user functionality.

This topic explains how to add the UltraBulletGraph control to a Windows Forms application.

Configuring Comparative Ranges

Comparative ranges configuration summary

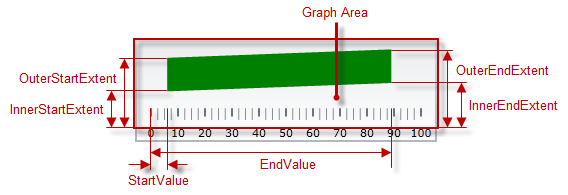

The UltraBulletGraph control supports multiple comparative ranges through populating its Ranges collection.

BulletGraph Configuring Comparative Ranges 1.png

Each range can be configured individually by specifying its starting and ending value (in the measures of the scale), fill color, and border thickness and color. The size of a comparative range in the across-the-scale is configurable by adjusting its inner and outer margins.

Comparative ranges configuration summary chart

The following table explains briefly the configurable aspects of UltraBulletGraph control’s comparative ranges and maps them to properties that configure them.

Configurable aspects Property Default value

Length, width, and position

Not set

Not set

Not set

Not set

Not set

Not set

Fill color

Defined in the default theme

Border color

Defined in the default theme

Border thickness

1.0

Note
Note:

If you do not explicitly provide values for the Brush and Outline properties for each range, the values are retrieved from the values of UltraBulletGraph ’s RangeBrushes and RangeOutlines collections. They can also be used to predefine a set of brushes to be used consecutively for setting each range’s color or outline fill.

Property settings

The following table maps the desired behavior to its respective property settings.

In order to configure: Details Use this property: And set it to:

Range start

Position on the scale at which the range begins

The desired value (in the measures of the scale)

Range end

Position on the scale at which the range ends

The desired value (in the measures of the scale)

Inner vertex of the starting edge of the range

The position of the inner vertex of the starting edge across the scale relative to the edge of the Reserved area.

(Inner vertex is the point of the starting edge that is the closest to the edge of the Reserved area.)

The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. _0.2 )

Inner vertex of the ending edge of the range

The position of the inner vertex of the ending edge across the scale relative to the edge of the Reserved area

The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.3 )

Outer vertex of the starting edge of the range

The position of the outer vertex of the starting edge across the scale relative to the edge of the Reserved area.

(Outer vertex is the point of the starting edge that is the closest to the edge of the Reserved area)

The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.7 )

Outer vertex of the ending edge of the range

The position of the outer vertex of the ending edge across the scale relative to the edge of the Reserved area

The desired value as a relative part of the height/width of the Graph area depending on the orientation (horizontal / vertical) presented as a fraction of 1 (e.g. 0.8 )

Fill color

Fill color of the range

The desired color

Border thickness

Thickness of the range’s border

The desired value in pixels

Border color

Color of the range’s border

The desired color

Example

The screenshot below demonstrates how a comparative range added to the UltraBulletGraph looks as a result of the following settings:

Property Value

“Green”

“6”

“89”

“0.5”

“0.5”

“0.8”

“0.8”

“Black”

BulletGraph Configuring Comparative Ranges 2.png

Following is the code that implements this example.

In C#:

LinearGraphRange range4 = new LinearGraphRange();
range4.Brush = new SolidColorBrush(Color.Green);
range4.StartValue = 6;
range4.EndValue = 89;
range4.InnerEndExtent = .5;
range4.InnerStartExtent = .5;
range4.OuterEndExtent = .8;
range4.OuterStartExtent = .8;
range4.Outline = new SolidColorBrush(Color.Black);

bulletGraph.Ranges.Add(range4);

In VB:

Dim range4 as New LinearGraphRange()
range4.Brush = New SolidColorBrush(Color.Green)
range4.StartValue = 6
range4.EndValue = 89
range4.InnerEndExtent = .5
range4.InnerStartExtent = .5
range4.OuterEndExtent = .8
range4.OuterStartExtent = .8
range4.Outline = New SolidColorBrush(Color.Black)

bulletGraph.Ranges.Add(range4)
