Touch-enabled WinListView Control

Topic Overview

Purpose

This topic illustrates the Infragistics touch-enabled WinListView™ control elements.

Touchable WinListView Control Elements

Overview

The following sections illustrate the touchable elements, encapsulated in red throughout this topic, in different views of the WinListView control.

Details view

The Details view is the only view that displays column headers.

Touch WinListView Control 1.png

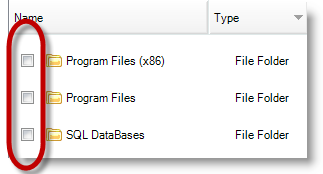

Details view with checkboxes

Only the Details or List view can enable checkboxes.

In C#:

ultraListView1.View = UltraListViewStyle.Details;
ultraListView1.ViewSettingsDetails.CheckBoxStyle = CheckBoxStyle.CheckBox;

In Visual Basic:

ultraListView1.View = UltraListViewStyle.Details
ultraListView1.ViewSettingsDetails.CheckBoxStyle = CheckBoxStyle.CheckBox
Touch WinListView Control 2.png

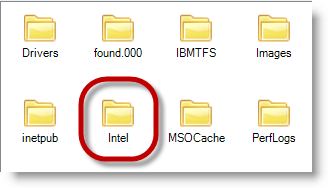

Icons view

Touch WinListView Control 3.png

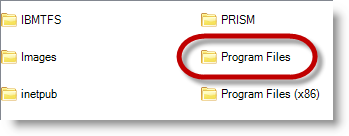

List view

Touch WinListView Control 4.png

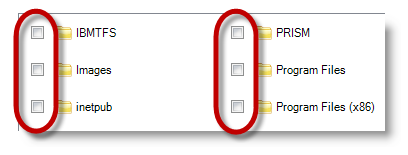

List view with checkboxes

Checkboxes can only be enabled with Details or List view.

In C#:

ultraListView1.View = UltraListViewStyle.List;
ultraListView1.ViewSettingsList.CheckBoxStyle = CheckBoxStyle.CheckBox;

In Visual Basic:

ultraListView1.View = UltraListViewStyle.List
ultraListView1.ViewSettingsList.CheckBoxStyle = CheckBoxStyle.CheckBox
Touch WinListView Control 5.png

Thumbnails view

Touch WinListView Control 6.png

Tiles view

Touch WinListView Control 7.png
