Topic Overview

Purpose

This topic introduces the Infragistics touch-enabled UltraToolbarsManager™ and Ribbon elements.

In this topic

This topic contains the following sections:

Touchable WinToolbarsManager and Ribbon Elements

Touchable elements

The UltraToolbarsManager control and Ribbon elements are illustrated in the following screenshots with the touch elements appearing slightly larger in touch-enabled mode; for easier user interaction.

Elements Image

Tools
Touch Ribbon (WinToolbarsManager) 1.png

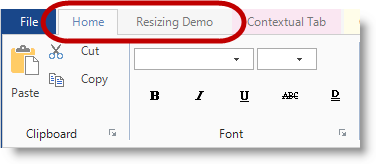

Ribbon tabs
Touch Ribbon (WinToolbarsManager) 2.png

Application menu button (Office 2010, Office 2013 and Scenic Ribbon)
Touch Ribbon (WinToolbarsManager) 3.png

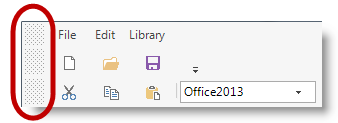

Toolbar GrabHandles
Touch Ribbon (WinToolbarsManager) 4.png

TaskPane Toolbar and Close Button
Touch Ribbon (WinToolbarsManager) 5.png

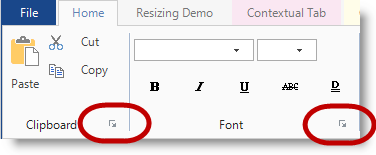

RibbonGroup DialogLauncher Button
Touch Ribbon (WinToolbarsManager) 6.png

Caption buttons (Glass disabled)
Touch Ribbon (WinToolbarsManager) 7.png

Dropdown button
Touch Ribbon (WinToolbarsManager) 8.png

QuickCustomize Button
Touch Ribbon (WinToolbarsManager) 9.png

Popup menu items
Touch Ribbon (WinToolbarsManager) 10.png

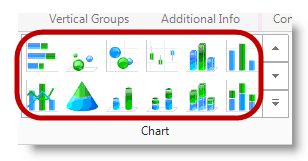

GalleryTool items
Touch Ribbon (WinToolbarsManager) 11.png

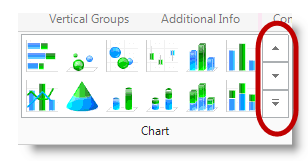

GalleryTool preview buttons
Touch Ribbon (WinToolbarsManager) 12.png

Popup menu Resize handle
Touch Ribbon (WinToolbarsManager) 13.png

PopupMenu Tearaway handle
Touch Ribbon (WinToolbarsManager) 14.png

Ribbon Pin button
Touch Ribbon (WinToolbarsManager) 15.png

Gesture support

The WinToolbarsManager supports the following gestures:

  • Horizontal panning of the Ribbon Tab items.

  • Horizontal panning of the Ribbon Group area.

  • Vertical panning of menus (Popup menu and Application Menu).

  • Vertical panning of Gallery Previews (both on Ribbon and on Dropdown).

  • Horizontal and Vertical panning of the Backstage.
