Task Information Dialog

The Task Information dialog is a window that provides editing support for a particular Task. You can also create a new Task from scratch. There are several tabs available in the dialog that can be used to set or view various Task settings such as task name, duration, percent complete, start and finish dates, dependency, resources, deadline, constraint, etc. You can invoke the dialog either from the context menu (by right-clicking in the Grid or chart section) or by double-clicking within the Grid or chart section of the control.

Note
Note

By default the context menu and Task Information dialog can be invoked only from the Grid section of the control. You can allow invoking from different section of the control using the AutoDisplayDefaultContextMenu and AutoDisplayTaskDialog properties.

In Visual Basic:

' Allow invoking Task Information dialog from the Grid as well as the chart sections of the control
Me.ultraGanttView1.AutoDisplayTaskDialog = Infragistics.Win.UltraWinGanttView.AutoDisplayTaskDialog.GridAreaOrChartArea
AddHandler Me.ultraGanttView1.TaskDialogDisplaying, AddressOf ultraGanttView1_TaskDialogDisplaying
Private Sub ultraGanttView1_TaskDialogDisplaying(ByVal sender As Object, ByVal e As Infragistics.Win.UltraWinGanttView.TaskDialogDisplayingEventArgs) Handles ultraGanttView1.TaskDialogDisplaying
    ' Get Reference to the Task that invoked the dialog
    Task taskInDialog = e.Task
End Sub

In C#:

// Allow invoking Task Information dialog from the Grid as well as the chart sections of the control
this.ultraGanttView1.AutoDisplayTaskDialog = Infragistics.Win.UltraWinGanttView.AutoDisplayTaskDialog. GridAreaOrChartArea;
this.ultraGanttView1.TaskDialogDisplaying += new Infragistics.Win.UltraWinGanttView.TaskDialogDisplayingHandler
(ultraGanttView1_TaskDialogDisplaying);
void ultraGanttView1_TaskDialogDisplaying(object sender, Infragistics.Win.UltraWinGanttView.TaskDialogDisplayingEventArgs e)
{
      // Get Reference to the Task that invoked the dialog
     Task taskInDialog = e.Task;
}

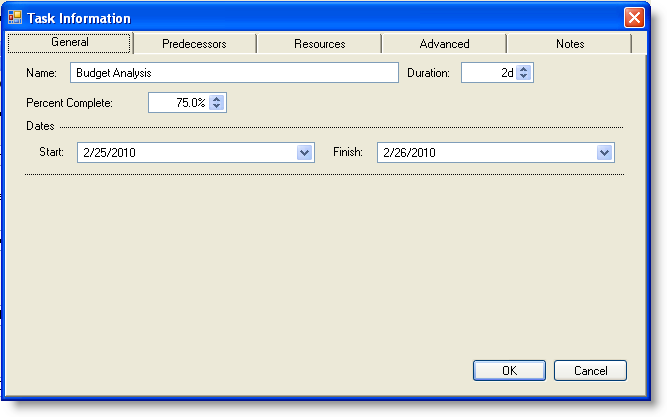

WinGanttView Task Inforamtion Dialog 01.png
