When creating an Outlook Group By grouping in WinGrid™, the area to the left of the expanded groups is known as the GroupByRowConnector. You can style the appearance of the row connectors for the entire control or for specific columns by using the GroupByRowConnectorAppearance property. You can also modify the row connector appearance on the UltraGridGroupByRow itself in order to style the row connectors for certain rows. This is done through the RowConnectorAppearance property. Additionally, you can style Group By rows themselves through the GroupByRowAppearance property.
It is assumed that a WinGrid control bound to the Employees table of the Northwind database is dropped onto the form. Write the following code in the Form load event.
In Visual Basic:

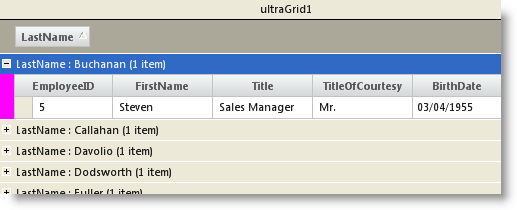

' Enable Outlook Group By Me.ultraGrid1.DisplayLayout.ViewStyleBand = Infragistics.Win.UltraWinGrid.ViewStyleBand.OutlookGroupBy ' Set the Row Connector back color to Magenta Me.ultraGrid1.DisplayLayout.Bands(0).Override.GroupByRowConnectorAppearance.BackColor = Color.Magenta
In C#:
// Enable Outlook Group By this.ultraGrid1.DisplayLayout.ViewStyleBand = Infragistics.Win.UltraWinGrid.ViewStyleBand.OutlookGroupBy; // Set the Row Connector back color to Magenta this.ultraGrid1.DisplayLayout.Bands[0].Override.GroupByRowConnectorAppearance.BackColor = Color.Magenta;
In Visual Basic:

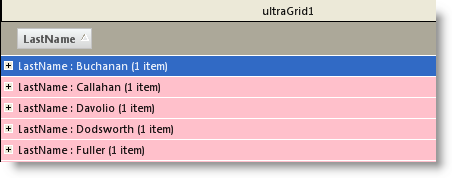

' Set the Back color appearance for all Group By Rows Me.ultraGrid1.DisplayLayout.Bands(0).Override.GroupByRowAppearance.BackColor = Color.Pink
In C#:
// Set the Back color appearance for all Group By Rows this.ultraGrid1.DisplayLayout.Bands[0].Override.GroupByRowAppearance.BackColor = Color.Pink;
In Visual Basic:
' Set the Row Connector Back color to Aqua for rows grouped by the FirstName column
Me.ultraGrid1.DisplayLayout.Bands(0).Columns("FirstName").GroupByRowConnectorAppearance.BackColor = Color.Aqua
In C#:
// Set the Row Connector Back color to Aqua for rows grouped by the FirstName column this.ultraGrid1.DisplayLayout.Bands[0].Columns["FirstName"].GroupByRowConnectorAppearance.BackColor = Color.Aqua;
In Visual Basic:
' Set the Back color appearance for Group By rows grouped by the BirthDate column Me.ultraGrid1.DisplayLayout.Bands[0].Columns["BirthDate"].GroupByRowAppearance.BackColor = Color.BurlyWood;
In C#:
// Set the Back color appearance for Group By rows grouped by the BirthDate column this.ultraGrid1.DisplayLayout.Bands[0].Columns["BirthDate"].GroupByRowAppearance.BackColor = Color.BurlyWood;

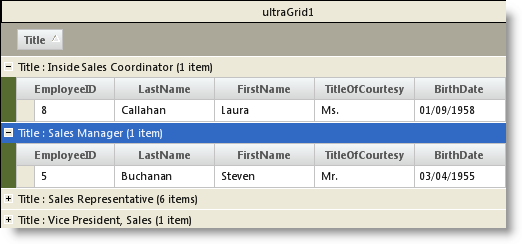

The following code shows how you can handle the WinGrid control’s InitializeGroupByRow event to style WinGrid. Write the following code within the InitializeGroupByRow event.
In Visual Basic:
' Set Connector appearance only if WinGrid is grouped by the Title column
If e.Row.Column.Header.Caption = “Title”
Then
' Set the color of the row connector area to DarkOliveGreen
e.Row.RowConnectorAppearance.BackColor = Color.DarkOliveGreen
End If
In C#:
// Set Connector appearance only if WinGrid is grouped by the Title column
if(e.Row.Column.Header.Caption = “Title”)
{
// Set the color of the row connector area to DarkOliveGreen
e.Row.RowConnectorAppearance.BackColor = Color.DarkOliveGreen;
}
