Axis Intervals

Purpose

This topic demonstrates how to configure the major and minor intervals for chart axes of the XamFinancialChart control.

In the XamFinancialChart control, axis major interval specifies how frequent major gridlines and axis labels are rendered on an axis. Similarly, axis minor interval specifies how frequent minor gridlines are rendered on an axis.

In this topic

This topic contains the following sections:

Configuring XAxis and YAxis Gridlines

In order to configure Use this property And set it to

The frequency of major interval gridlines

This value provides configurable spacing for y-axis labels and major gridlines. Note that the interval for axis labels will also be set by this value, displaying one label at the point on the axis associated with the interval.

On the XamFinancialChart control’s axes, this value is represented as a number between the axis minimum value and axis maximum value. By default, this axis will automatically calculate and find a nice and round interval based on axis minimum values and maximum value.

The color of the major interval gridlines

A color of axis major gridlines.

The thickness of the major interval gridlines

A thickness in pixels of the axis major gridline stroke set as a double value.

The color of the minor interval gridlines

A color of axis minor gridlines.

The thickness of the minor interval gridlines

A thickness in pixels of the axis minor gridline stroke set as a double value.

Code Snippet

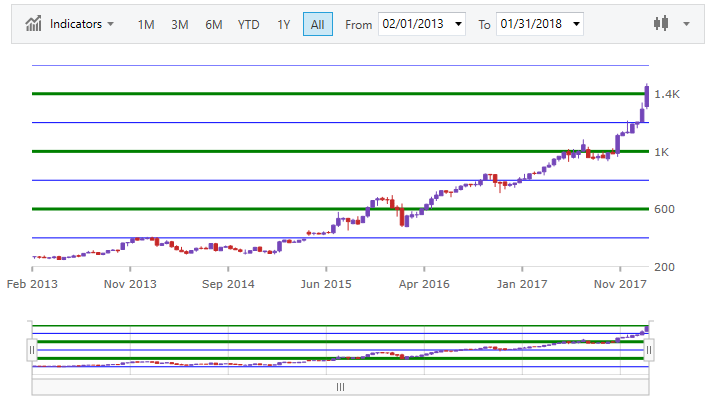

The following code snippet demonstrates how to configure the interval on the Y-axis.

In XAML:

<ig:XamFinancialChart x:Name="chart1"
    YAxisInterval="400"
    YAxisMajorStroke="Green"
    YAxisMinorStroke="Blue"
    YAxisMajorStrokeThickness="3"
    YAxisMinorStrokeThickness="1" >
</ig:XamFinancialChart>

In C#:

XamFinancialChart chart1 = new XamFinancialChart();
chart1.YAxisInterval = 400;
chart1.YAxisMajorStroke = Brushes.Green;
chart1.YAxisMinorStroke = Brushes.Blue;
chart1.YAxisMajorStrokeThickness = 3;
chart1.YAxisMinorStrokeThickness = 1;

In Visual Basic:

Dim chart1 As XamFinancialChart = new XamFinancialChart()
chart1.YAxisInterval = 400
chart1.YAxisMajorStroke = Brushes.Green
chart1.YAxisMinorStroke = Brushes.Blue
chart1.YAxisMajorStrokeThickness = 3
chart1.YAxisMinorStrokeThickness = 1
financialchart wpf axis intervals.png
