Configuring Aspect

Overview

Use the XamScatterSurface3D Aspect property to configure the aspect of the xamScatterSurface3D control.

Property settings

The following table maps the desired configuration to the property settings that manage it.

In order to: Use this property: And set it to:

Configure the aspect of the xamScatterSurface3D control

Vector3D

Example

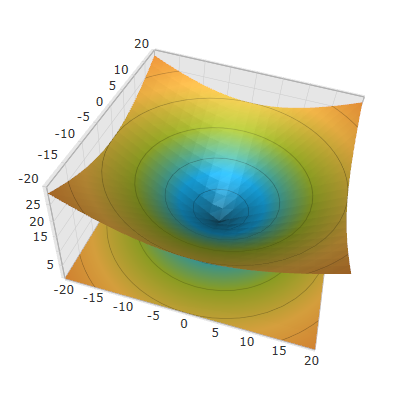

The screenshot below demonstrates how the xamScatterSurface3D looks as a result of the following code:

Aspect and Perspective 1.png

Following is the code that implements this example.

In XAML:

<ig:XamScatterSurface3D Name="SurfaceChart"
 ItemsSource="{Binding Path=DataCollection}"
 XMemberPath="X" YMemberPath="Y" ZMemberPath="Z"
 Aspect="1 1 0.5" />

Following is the code that implements this example in C#.

In C#:

SurfaceChart.Aspect = new System.Windows.Media.Media3D.Vector3D(1, 1, 0.5);

Following is the code that implements this example in VB.

In Visual Basic:

SurfaceChart.Aspect = New System.Windows.Media.Media3D.Vector3D(1, 1, 0.5)

Configuring Perspective

Overview

Use the XamScatterSurface3D Perspective property to configure the perspective of the xamScatterSurface3D control.

By default, the initial value of the Perspective property is 0.5.

Property settings

The following table maps the desired configuration to the property settings that manage it.

In order to: Use this property: And set it to:

Configure the perspective of the xamScatterSurface3D control

double

Example

The screenshot below demonstrates how the xamScatterSurface3D looks as a result of the following code:

Aspect and Perspective 2.png

Following is the code that implements this example.

In XAML:

<ig:XamScatterSurface3D Name="SurfaceChart" ItemsSource="{Binding Path=DataCollection}" XMemberPath="X" YMemberPath="Y" ZMemberPath="Z" Perspective="1"/>

Following is the code that implements this example.

In C#:

SurfaceChart.Perspective = 1;

Following is the code that implements this example.

In Visual Basic:

SurfaceChart.Perspective = 1
