Context Menu Interactions (XamSpreadsheet)

Purpose

This topic explains what operations can be performed by the user with the control’s context menu.

Required background

The following table lists the concept and topics required as a prerequisite to understanding this topic.

Type Content

Concept

Infragistics Excel Engine
Topic Purpose

In this section you will find information that will help you to better understand the object model and the functionalities of the Infragistics Excel Engine .

This topic explains in details the features of the XamSpreadsheet control from developer perspective.

This topic provides an overview of the visual elements of the XamSpreadsheet control.

In this topic

This topic contains the following sections:

Introduction

Context menu summary

The XamSpreadsheet control provides a context menu which is opened by right clicking on the control elements. The context menu allows the user to perform different operations depending on the elements on which the right click were performed.

The following XamSpreadsheet elements have their specific context menus:

  • Formula editor

  • Worksheet column(s) or rows(s)

  • Worksheet cells

  • Worksheet cells within edit mode (in-place editor)

  • Worksheet tab bar area

Note
Note

If the user has more than one worksheet selected and perform clipboard operation on cell(s) in the active worksheet, all selected worksheets will be affected. Cut operation will move cells' content from all selected worksheets to the clipboard, copy operation will duplicate cells' content from all selected worksheets and paste operation will copy clipboard content into the specified cells in all selected worksheets.

Context Menu on Worksheet Column(s) or Row(s)

Column(s) or row(s) context menu summary

The worksheet column(s) or row(s) context menu allows the user to:

  • Perform clipboard operations on the selected column(s) or row(s)

  • Insert/delete column(s) or row(s) or their content

  • Hide/unhide and auto-size column(s) and row(s)

  • Remove hyperlinks in the selected column(s) or row(s) which will remove the cells' worksheet hyperlinks only (formula hyperlinks will not be removed) but the cells' data content will be left intact

The following screenshot shows the worksheet column(s) or row(s) context menu:

xamSpreadsheet 07.png

Context Menu on Formula Editor and In-Place Editor

Formula editor and in-place editor context menu summary

The control provides a context menu for the formula editor and for the cell’s in-place editor which allows the user to perform clipboard operations.

The following screenshot shows the context menu for the formula editor and for the in-place editor:

xamSpreadsheet 08.png

Context Menu on Worksheet Cells

Worksheet cells context menu summary

The worksheet cells context menu allows the user to:

  • Perform clipboard operations over the cell(s)

  • Insert new empty cells

  • Delete cells or delete cells' content only

  • Open hyperlink (available only when a single cell with hyperlink is selected)

  • Remove hyperlink (only when at least one worksheet hyperlink is selected)

Note
Note

Formula hyperlinks cannot be removed with the “Remove Hyperlink” context menu option.

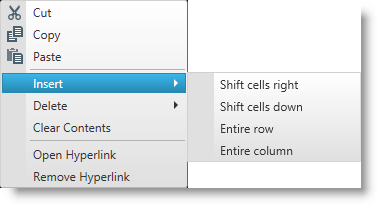

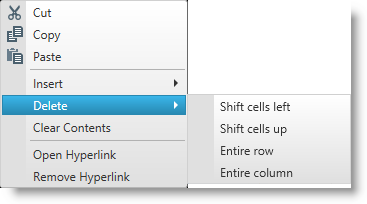

The following screenshots show the worksheet cells context menu:

xamSpreadsheet 09.png
xamSpreadsheet 10.png

Context Menu on Worksheets Tab Bar Area

Worksheet tab bar area context menu summary

The context menu of the worksheets tab bar area allows the user to:

  • Insert new worksheet

  • Delete existing worksheet

  • Rename existing worksheet

  • Select all worksheets

  • Unselect all worksheets ("Ungroup Sheets" menu item)

The following screenshot shows the worksheets tab bar area context menu when one worksheet is selected:

xamSpreadsheet 11.png

The following screenshot shows the worksheets tab bar area context menu when several worksheets are selected:

xamSpreadsheet 15.png
