Sorting Dialog Interactions (XamSpreadsheet)

Purpose

This topic explains what operations can be performed by the user with the control’s custom sort dialog to create multiple sort conditions for columns or rows present in a table, worksheet, or filter region.

Required background

The following table lists the concept and topics required as a prerequisite to understanding this topic.

Topic Purpose

In this section you will find information that will help you to better understand the object model and the functionalities of the Infragistics Excel Engine .

This topic explains in details the features of the XamSpreadsheet control from developer perspective.

This topic provides an overview of the visual elements of the XamSpreadsheet control.

Custom Sort Dialog

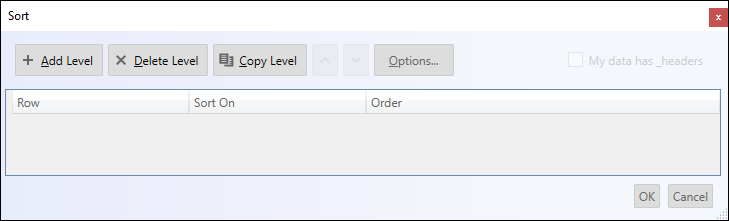

spreadsheet sort dialog.png

Sort dialog summary

The XamSpreadsheet control provides a custom sort dialog, aimed at sorting multiple columns or rows in a defined order.

The dialog can be opened by first displaying up the XamSpreadsheet's context menu. This can be achieved by either right-clicking or pressing (Alt + Shift + F10) on a cell that pertains to a worksheet, filter region or table. Next, select the Sort option followed by Custom Sort option (as shown in the image below) and the dialog will appear.

context sort.png

To start an initial sort condition, you must fullfill three categories. Note, the dialog defaults to column sorting. You may change this to Row sorting, but not both, by using the Options button at the top of the dialog.

  • Column or Row - The minimum requirement for a sort condition to be applied. Defaults are provided for both Sort On and Order fields.

  • Sort On - There are four distinct options for sorting, 'Font Color', 'Cell Color', 'Cell Value', and 'Conditional Formatting Icon'. See screenshot below for more details.

  • Order - When 'Font Color' is selected from the Sort On field, the colors from the cell’s foreground become the available as Order options. When 'Cell Color' is selected from the Sort On field, the unique colors from the cell’s background become the available order options. When 'Cell Values' is selected from the Sort on field the Order can be sorted (A to Z) or (Z to A) for letters and symbols. When the values contain numeric values the Order can be sorted (Smallest to Largest) or (Largest to Smallest). When Conditional Formatting Icon is selected from the Sort On field, the order of rows will be based on the icons themselves.

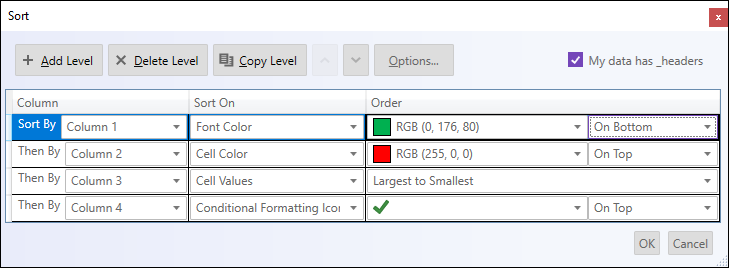

The following image is an example of all four Sort On options:

spreadsheet custom sort dialog.png

Additional Notes:

When more than one sort condition is applied you may reorder the conditions via the up and down buttons at the top of the dialog.

The delete button will delete the active sort criteria.
