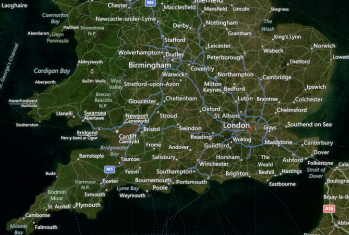

Displaying Geographic Imagery from Bing Maps using Custom Classes

Imports System.Collections.ObjectModel
Imports System.ComponentModel
Imports System.Net ' HttpWebRequest
Imports System.Runtime.Serialization ' DataContract, DataMember
Imports System.Runtime.Serialization.Json ' DataContractJsonSerializer

Namespace Infragistics.Samples.Services
    ''' <summary>
    ''' <para> Represents a connector class that sets up BingMaps REST imagery service </para>
    ''' <para> and provides imagery tiles via Http web requests.</para>
    ''' <remarks>Bing Maps REST Services: http://msdn.microsoft.com/en-us/library/ff701713.aspx </remarks>
    ''' </summary>
    Public Class BingMapsConnector
        Implements INotifyPropertyChanged
        Public Sub New()
            Me.IsInitialized = False
        End Sub

#Region "Events"
        Public Event ImageryInitialized As EventHandler
        Public Event PropertyChanged As PropertyChangedEventHandler Implements INotifyPropertyChanged.PropertyChanged
#End Region

#Region "Properties"
        Private _apiKeyProperty As String
        ''' <summary>
        ''' Gets or sets an API key required by the Bing Maps imagery service.
        ''' <remarks>This key must be obtained from the http://www.bingmapsportal.com website. </remarks>
        ''' </summary>
        Public Property ApiKey() As String
            Get
                Return Me._apiKeyProperty
            End Get
            Set
                Me._apiKeyProperty = Value
                Me.Validate()
                RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs("ApiKeyProperty"))
            End Set
        End Property

        Private _imageryStyle As BingMapsImageryStyle
        ''' <summary>
        ''' <para> Gets or sets a map style of the Bing Maps imagery tiles. </para>
        ''' <para> For example: Aerial, AerialWithLabels, or Road map style. </para>
        ''' </summary>
        Public Property ImageryStyle() As BingMapsImageryStyle
            Get
                Return Me._imageryStyle
            End Get
            Set
                Me._imageryStyle = Value
                Me.Validate()
                RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs("ApiKeyProperty"))
            End Set
        End Property

        Private _tilePath As String
        ''' <summary>
        ''' Gets an imagery tile path for the Bing Maps service.
        ''' </summary>
        Public Property TilePath() As String
            Get
                Return _tilePath
            End Get
            Private Set
                _tilePath = Value
                RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs("TilePath"))
            End Set
        End Property

        Private _subDomains As ObservableCollection(Of String)
        ''' <summary>
        ''' Gets a collection of image URI sub-domains for the Bing Maps service.
        ''' </summary>
        Public Property SubDomains() As ObservableCollection(Of String)
            Get
                Return _subDomains
            End Get
            Private Set
                _subDomains = Value
                RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs("SubDomains"))
            End Set
        End Property

        Private _isInitialized As Boolean
        ''' <summary>
        ''' Gets a status whether the Bing Maps service is initialized.
        ''' </summary>
        Public Property IsInitialized() As Boolean
            Get
                Return _isInitialized
            End Get
            Private Set
                _isInitialized = Value
            End Set
        End Property

        Private _isAutoInitialized As Boolean
        ''' <summary>
        ''' Gets or sets whether the Bing Maps service should be auto-initialized upon valid property values.
        ''' </summary>
        Public Property IsAutoInitialized() As Boolean
            Get
                Return Me._isAutoInitialized
            End Get
            Set
                Me._isAutoInitialized = Value
                Me.Validate()
                RaiseEvent PropertyChanged(Me, New PropertyChangedEventArgs("IsAutoInitialized"))
            End Set
        End Property
#End Region

#Region "Methods"
        Private Sub Validate()
            Me.IsInitialized = False
            If Not IsValidApiKey() Then
                Return
            End If
            If Me.IsAutoInitialized Then
                Initialize()
            End If
        End Sub

        Private Function IsValidApiKey() As Boolean
            If [String].IsNullOrEmpty(Me.ApiKey) OrElse Me.ApiKey.Length < 20 Then
                Return False
            End If

            Return True
        End Function

        Public Sub Initialize()
            If Not IsValidApiKey() Then
                Me.IsInitialized = False
                System.Diagnostics.Debug.WriteLine(Convert.ToString("Detected Invalid BingMaps API key: ") & Me.ApiKey)
                Return
            End If

            Me.IsInitialized = True
            ' for more info on setting up web requests to BingMaps REST imagery service
            ' refer to: http://msdn.microsoft.com/en-us/library/ff701716.aspx
            Dim bingUrl = "http://dev.virtualearth.net/REST/v1/Imagery/Metadata/"
            Dim imagerySet = Me.ImageryStyle
            bingUrl = bingUrl & imagerySet
            Dim parms = (Convert.ToString("key=") & Me.ApiKey) + "&include=ImageryProviders"
            Dim url = bingUrl & "?" & parms
            Dim req = HttpWebRequest.Create(url)
            req.BeginGetResponse(AddressOf GetResponseCompleted, req)
        End Sub
#End Region

#Region "Event Handlers"
        Private Sub GetResponseCompleted(res As IAsyncResult)
            Dim req = DirectCast(res.AsyncState, HttpWebRequest)
            Dim response = req.EndGetResponse(res)
            ' alternatively, parsing of BingResponse can be performed using LINQ to XML
            ' instead of using JSON deserializer
            Dim json = New DataContractJsonSerializer(GetType(BingResponse))
            Dim resp = DirectCast(json.ReadObject(response.GetResponseStream()), BingResponse)
            If resp.ResourceSets Is Nothing OrElse resp.ResourceSets.Count < 1 OrElse resp.ResourceSets(0).Resources Is Nothing OrElse resp.ResourceSets(0).Resources.Count < 1 Then
                Return
            End If

            Dim imageUrl = resp.ResourceSets(0).Resources(0).ImageUrl
            Dim subDomains__1 = resp.ResourceSets(0).Resources(0).ImageUrlSubdomains
            If imageUrl Is Nothing OrElse subDomains__1 Is Nothing Then
                Return
            End If

            TilePath = imageUrl
            SubDomains = New ObservableCollection(Of String)(subDomains__1)

            RaiseEvent ImageryInitialized(Me, New EventArgs())
        End Sub
#End Region
    End Class

    ''' <summary>
    ''' Determines map style for the Bing Maps imagery.
    ''' </summary>
    Public Enum BingMapsImageryStyle
        ''' <summary>
        ''' Specifies the Aerial map style without road or labels overlay.
        ''' </summary>
        Aerial
        ''' <summary>
        ''' Specifies the Aerial map style with road and labels overlay.
        ''' </summary>
        AerialWithLabels
        ''' <summary>
        ''' Specifies the Roads map style without aerial overlay.
        ''' </summary>
        Road
#Region "Not supported Bing Maps styles by the UltraGeographicMap control"
        ''''// <summary>
        ''''// Specifies the Bird’s eye (oblique-angle) map style
        ''''// </summary>
        'Birdseye,
        ''''// <summary>
        ''''// Specifies the Bird’s eye map style with road and labels overlay.
        ''''// </summary>
        'BirdseyeWithLabels,
#End Region
    End Enum

    <DataContract>
    Public Class BingResponse
        Public Sub New()
            ResourceSets = New List(Of BingResourceSet)()
        End Sub
        <DataMember(Name:="resourceSets")>
        Public Property ResourceSets() As List(Of BingResourceSet)
            Get
                Return m_ResourceSets
            End Get
            Set
                m_ResourceSets = Value
            End Set
        End Property
        Private m_ResourceSets As List(Of BingResourceSet)
    End Class

    <DataContract>
    Public Class BingResourceSet
        Public Sub New()
            Resources = New List(Of ImageryMetadata)()
        End Sub
        <DataMember(Name:="resources")>
        Public Property Resources() As List(Of ImageryMetadata)
            Get
                Return m_Resources
            End Get
            Set
                m_Resources = Value
            End Set
        End Property
        Private m_Resources As List(Of ImageryMetadata)
    End Class

    <DataContract([Namespace]:="http://schemas.microsoft.com/search/local/ws/rest/v1")>
    Public Class ImageryMetadata
        Public Sub New()
            ImageUrlSubdomains = New List(Of String)()
        End Sub
        <DataMember(Name:="imageUrl")>
        Public Property ImageUrl() As String
            Get
                Return m_ImageUrl
            End Get
            Set
                m_ImageUrl = Value
            End Set
        End Property
        Private m_ImageUrl As String
        <DataMember(Name:="imageUrlSubdomains")>
        Public Property ImageUrlSubdomains() As List(Of String)
            Get
                Return m_ImageUrlSubdomains
            End Get
            Set
                m_ImageUrlSubdomains = Value
            End Set
        End Property
        Private m_ImageUrlSubdomains As List(Of String)
    End Class
End Namespace

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Net;                           // HttpWebRequest
using System.Runtime.Serialization;         // DataContract, DataMember
using System.Runtime.Serialization.Json;    // DataContractJsonSerializer

namespace Infragistics.Samples.Services
{
    /// <summary>
    /// <para> Represents a connector class that sets up BingMaps REST imagery service </para>
    /// <para> and provides imagery tiles via Http web requests.</para>
    /// <remarks>Bing Maps REST Services: http://msdn.microsoft.com/en-us/library/ff701713.aspx </remarks>
    /// </summary>
    public class BingMapsConnector : INotifyPropertyChanged
    {
        public BingMapsConnector()
        {
            this.IsInitialized = false;
        }

        #region Events
        public event EventHandler ImageryInitialized;
        public event PropertyChangedEventHandler PropertyChanged;
        #endregion

        #region Properties
        private string _apiKeyProperty;
        /// <summary>
        /// Gets or sets an API key required by the Bing Maps imagery service.
        /// <remarks>This key must be obtained from the http://www.bingmapsportal.com website. </remarks>
        /// </summary>
        public string ApiKey
        {
            get { return this._apiKeyProperty; }
            set
            {
                this._apiKeyProperty = value;
                this.Validate();
                if(this.PropertyChanged != null)
                {
                    this.PropertyChanged(this, new PropertyChangedEventArgs("ApiKeyProperty"));
                }
            }
        }

        private BingMapsImageryStyle _imageryStyle;
        /// <summary>
        /// <para> Gets or sets a map style of the Bing Maps imagery tiles. </para>
        /// <para> For example: Aerial, AerialWithLabels, or Road map style. </para>
        /// </summary>
        public BingMapsImageryStyle ImageryStyle
        {
            get { return this._imageryStyle; }
            set
            {
                this._imageryStyle = value;
                this.Validate();
                if(this.PropertyChanged != null)
                {
                    this.PropertyChanged(this, new PropertyChangedEventArgs("ApiKeyProperty"));
                }
            }
        }

        private string _tilePath;
        /// <summary>
        /// Gets an imagery tile path for the Bing Maps service.
        /// </summary>
        public string TilePath
        {
            get { return _tilePath; }
            private set
            {
                _tilePath = value;
                if(PropertyChanged != null)
                {
                    PropertyChanged(this, new PropertyChangedEventArgs("TilePath"));
                }
            }
        }

        private ObservableCollection<string> _subDomains;
        /// <summary>
        /// Gets a collection of image URI sub-domains for the Bing Maps service.
        /// </summary>
        public ObservableCollection<string> SubDomains
        {
            get
            {
                return _subDomains;
            }
            private set
            {
                _subDomains = value;
                if(PropertyChanged != null)
                {
                    PropertyChanged(this, new PropertyChangedEventArgs("SubDomains"));
                }
            }
        }

        /// <summary>
        /// Gets a status whether the Bing Maps service is initialized.
        /// </summary>
        public bool IsInitialized { get; private set; }

        private bool _isAutoInitialized;
        /// <summary>
        /// Gets or sets whether the Bing Maps service should be auto-initialized upon valid property values.
        /// </summary>
        public bool IsAutoInitialized
        {
            get { return this._isAutoInitialized; }
            set
            {
                this._isAutoInitialized = value;
                this.Validate();
                if(this.PropertyChanged != null)
                {
                    this.PropertyChanged(this, new PropertyChangedEventArgs("IsAutoInitialized"));
                }
            }
        }
        #endregion

        #region Methods
        private void Validate()
        {
            this.IsInitialized = false;
            if(!IsValidApiKey())
            {
                return;
            }
            if(this.IsAutoInitialized)
            {
                Initialize();
            }
        }

        private bool IsValidApiKey()
        {
            if(String.IsNullOrEmpty(this.ApiKey) || this.ApiKey.Length < 20)
            {
                return false;
            }

            return true;
        }
        public void Initialize()
        {
            if(!IsValidApiKey())
            {
                this.IsInitialized = false;
                System.Diagnostics.Debug.WriteLine("Detected Invalid BingMaps API key: " + this.ApiKey);
                return;
            }

            this.IsInitialized = true;
            // for more info on setting up web requests to BingMaps REST imagery service
            // refer to: http://msdn.microsoft.com/en-us/library/ff701716.aspx
            var bingUrl = "http://dev.virtualearth.net/REST/v1/Imagery/Metadata/";
            var imagerySet = this.ImageryStyle;
            bingUrl += imagerySet;
            var parms = "key=" + this.ApiKey + "&include=ImageryProviders";
            var url = bingUrl + "?" + parms;
            var req = HttpWebRequest.Create(url);
            req.BeginGetResponse(GetResponseCompleted, req);
        }
        #endregion

        #region Event Handlers
        private void GetResponseCompleted(IAsyncResult res)
        {
            var req = (HttpWebRequest)res.AsyncState;
            var response = req.EndGetResponse(res);
            // alternatively, parsing of BingResponse can be performed using LINQ to XML
            // instead of using JSON deserializer
            var json = new DataContractJsonSerializer(typeof(BingResponse));
            var resp = (BingResponse)json.ReadObject(response.GetResponseStream());
            if(resp.ResourceSets == null ||
                resp.ResourceSets.Count < 1 ||
                resp.ResourceSets[0].Resources == null ||
                resp.ResourceSets[0].Resources.Count < 1)
            {
                return;
            }

            var imageUrl = resp.ResourceSets[0].Resources[0].ImageUrl;
            var subDomains = resp.ResourceSets[0].Resources[0].ImageUrlSubdomains;
            if(imageUrl == null || subDomains == null)
            {
                return;
            }

            TilePath = imageUrl;
            SubDomains = new ObservableCollection<string>(subDomains);

            if(ImageryInitialized != null)
            {
                ImageryInitialized(this, new EventArgs());
            }
        }
        #endregion
    }

    /// <summary>
    /// Determines map style for the Bing Maps imagery.
    /// </summary>
    public enum BingMapsImageryStyle
    {
        /// <summary>
        /// Specifies the Aerial map style without road or labels overlay.
        /// </summary>
        Aerial,
        /// <summary>
        /// Specifies the Aerial map style with road and labels overlay.
        /// </summary>
        AerialWithLabels,
        /// <summary>
        /// Specifies the Roads map style without aerial overlay.
        /// </summary>
        Road,
        #region Not supported Bing Maps styles by the UltraGeographicMap control
        ///// <summary>
        ///// Specifies the Bird’s eye (oblique-angle) map style
        ///// </summary>
        //Birdseye,
        ///// <summary>
        ///// Specifies the Bird’s eye map style with road and labels overlay.
        ///// </summary>
        //BirdseyeWithLabels,
        #endregion
    }

    [DataContract]
    public class BingResponse
    {
        public BingResponse()
        {
            ResourceSets = new List<BingResourceSet>();
        }

        [DataMember(Name = "resourceSets")]
        public List<BingResourceSet> ResourceSets { get; set; }
    }

    [DataContract]
    public class BingResourceSet
    {
        public BingResourceSet()
        {
            Resources = new List<ImageryMetadata>();
        }

        [DataMember(Name = "resources")]
        public List<ImageryMetadata> Resources { get; set; }
    }

    [DataContract(Namespace = "http://schemas.microsoft.com/search/local/ws/rest/v1")]
    public class ImageryMetadata
    {
        public ImageryMetadata()
        {
            ImageUrlSubdomains = new List<string>();
        }

        [DataMember(Name = "imageUrl")]
        public string ImageUrl { get; set; }

        [DataMember(Name = "imageUrlSubdomains")]
        public List<string> ImageUrlSubdomains { get; set; }
    }
}

Private WithEvents connector As New BingMapsConnector()

connector.ApiKey = "BING_MAPS_API_KEY"
connector.ImageryStyle = BingMapsImageryStyle.Road
connector.IsAutoInitialized = True

BingMapsConnector connector = new BingMapsConnector();
connector.ApiKey = "BING_MAPS_API_KEY";
connector.ImageryStyle = BingMapsImageryStyle.Road;
connector.ImageryInitialized += OnImageryInitialized;
connector.IsAutoInitialized = true;

Private Sub OnImageryInitialized(sender As Object, e As EventArgs) Handles connector.ImageryInitialized
    Me.GeoMap.Invoke(DirectCast(Sub() UpdateBingMaps(sender), Action))
End Sub

private void OnImageryInitialized(object sender, EventArgs e)
{
    this.GeoMap.Invoke((Action)(() => UpdateBingMaps(sender)));
}

Private Sub UpdateBingMaps(sender As Object)
      Dim connector = DirectCast(sender, Infragistics.Samples.Services.BingMapsConnector)
      Me.GeoMap.SetImagery(New BingMapsMapImagery() With {
            .TilePath = connector.TilePath, .SubDomains = connector.SubDomains})
End Sub

private void UpdateBingMaps(object sender)
{
   var connector = (Infragistics.Samples.Services.BingMapsConnector)sender;
    this.GeoMap.SetImagery(
       new BingMapsMapImagery()
       {
           TilePath = connector.TilePath,
           SubDomains = connector.SubDomains
       });
}
