Others Category

This topic demonstrates how to configure the Others category for the XamPieChart™ control. At the end of the topic, the complete code sample is provided.

The topic is organized as follows:

Introduction
Preview
Requirements
Overview
Steps
Related Content

Introduction

Sometimes, the underlying data for the Pie Chart control will contain many items with small values. In this case, the Others category will permit automatic aggregation of several data values into a single slice.

Preview

Following is a preview of the final result:

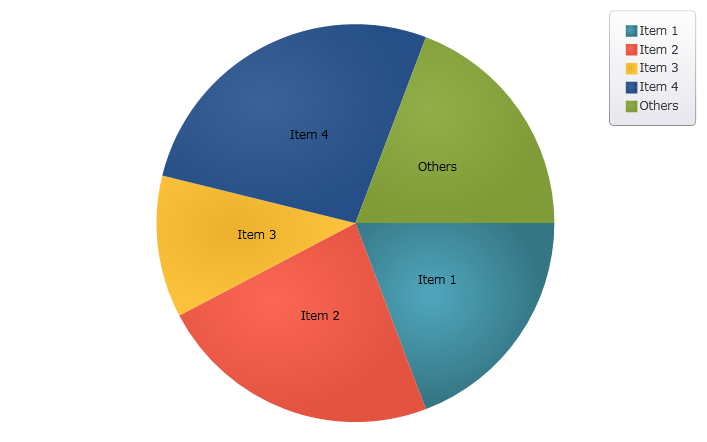

Figure 1: A pie chart featuring the Others category as implemented by the sample code

Requirements

This topic assumes you have already read the Data Binding topic, and uses the code therein as a starting point.

Overview

Defining a Data Model.
Configuring an instance of the Data class as the ItemSource for a Pie Chart
Configuring the Others category
(Optional) Verifying the result

Steps

Define a Data Model .

Define a simple data model called DataItem. Then, define a Data collection containing several DataItems of relatively small value:

In C#:

    public class DataItem
    {
        public string Label { get; set; }
        public double Value { get; set; }
    }
    public class Data : ObservableCollection<DataItem>
    {
        public Data()
        {
            Add(new DataItem { Label = "Item 1", Value = 5 });
            Add(new DataItem { Label = "Item 2", Value = 6 });
            Add(new DataItem { Label = "Item 3", Value = 3 });
            Add(new DataItem { Label = "Item 4", Value = 7 });
            Add(new DataItem { Label = "Item 5", Value = 1 });
            Add(new DataItem { Label = "Item 6", Value = 1 });
            Add(new DataItem { Label = "Item 7", Value = 1 });
            Add(new DataItem { Label = "Item 8", Value = 1 });
            Add(new DataItem { Label = "Item 9", Value = 1 });
        }
    }

In Visual Basic:

Public Class DataItem
    Public Property Label() As String
        Get
            Return _Label
        End Get
        Set
            _Label = Value
        End Set
    End Property
    Private _Label As String
    Public Property Value() As Double
        Get
            Return _Value
        End Get
        Set
            _Value = Value
        End Set
    End Property
    Private _Value As Double
End Class
Public Class Data
    Inherits ObservableCollection(Of DataItem)
    Public Sub New()
        Add(New DataItem() With { .Label = "Item 1", .Value = 5  })
        Add(New DataItem() With { .Label = "Item 2", .Value = 6  })
        Add(New DataItem() With { .Label = "Item 3", .Value = 3  })
        Add(New DataItem() With { .Label = "Item 4", .Value = 7  })
        Add(New DataItem() With { .Label = "Item 5", .Value = 1  })
        Add(New DataItem() With { .Label = "Item 6", .Value = 1  })
        Add(New DataItem() With { .Label = "Item 7", .Value = 1  })
        Add(New DataItem() With { .Label = "Item 8", .Value = 1  })
        Add(New DataItem() With { .Label = "Item 9", .Value = 1  })
    End Sub
End Class

Configure an instance of the Data class as the ItemSource for a Pie Chart .

In XAML:

    <Grid x:Name="LayoutRoot" Background="White">
        <Grid.Resources>
            <local:Data x:Key="data" />
        </Grid.Resources>
        <ig:ItemLegend x:Name="Legend"
                       Grid.Row="1"
                       VerticalAlignment="Top"
                       HorizontalAlignment="Right" />
        <ig:XamPieChart Name="pieChart"
                        Grid.Row="2"
                        ItemsSource="{StaticResource data}"
                        LabelMemberPath="{}{Label}"
                        ValueMemberPath="Value"
                        LabelsPosition="BestFit"
                        Legend="{Binding ElementName=Legend}" />
    </Grid>

The Pie Chart will now display as shown in Figure 2:

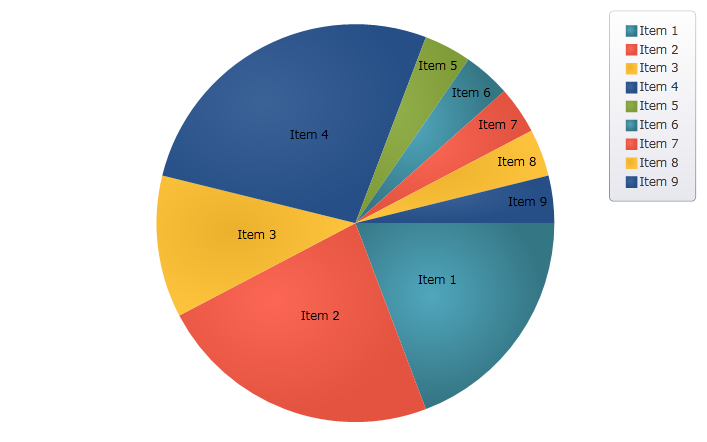

Figure 2: The pie chart, before configuring the Others category

Configure the Others category .

Items 5 through 9 are very small, giving the chart a cluttered appearance. Assign these items to the Others category using the OthersCategoryThreshold, OthersCategoryType, and OthersCategoryText properties on XamPieChart:

In XAML:

<ig:XamPieChart Name="pieChart"
                OthersCategoryThreshold="2"
                OthersCategoryType="Number"
                OthersCategoryText="Others" />

Here, the OthersCategoryThreshold is set to 2, and OthersCategoryType is set to Number. Therefore, items with value less than or equal to 2 will be assigned to the “Others” category.

(Optional) Verify the result.

Run the application. The Pie Chart should now display as shown in Figure 1, above.

Note

Note:

If you set OthersCategoryType to Percent, then OthersCategoryThreshold will be interpreted as a percentage rather than as a value, i.e. items whose values are less than 2% of the sum of all item values would be assigned to the Others category. You can use whichever OthersCategoryType is most appropriate for your application.
